Electric Submersible Pump Series

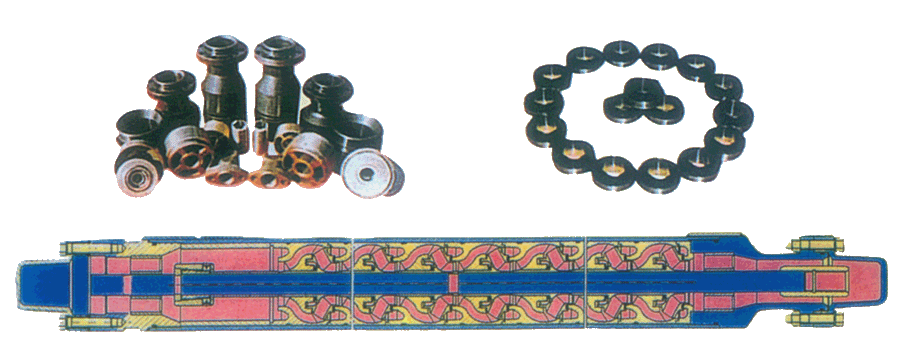

The Electric Submersible Pump manufactured by our company comprises four main parts：E-motor，protector，Gas separator and pump. There are three major series：Read series，Centre lift series and proprietary series. Our company also produces Impeller& Diffuser，the main component of Electric Submersible Pump，which include series 98，101,130 and 138.To further satisfy customer needs，WE also provides special tool kits for Electric Submersible Pump，including tightening clamps，cutting clamps，different sizes of multi-purpose lifting clamps for transporting engines，electric pumps and etc.2 3/8”-3 1/2”steel cable clamps，different wellhead equipment for electric pumps and accessories like oil drainage apparatus.



Electric Submersible Pump
Model umber and specifications
Pump
Model numbers
Specs Displacement
（m）
Reda
387
100
100
1000
200
200
250
250
320
320
425
425
Centrilift
400
100
100
200
200
250
250
320
320
425
425
proprietary series
98
100
100
150
150
200
200


Performance parameter list of impeller & diffuser for ESP
Series
Model
Flow
Delivery
lift（m）
Efficiency
（%）
Diameter of
impeller hole
（mm）
Diameter of
impeller hole
（mm）
Height of stage of diffuser（mm）
Rotating speed（r/min）
Rotating direction Looking from outlet
375
A10
100
4.5
55
85
Φ18
28
2820
Clockwise
375
A15
120
4.6
56.7
85
Φ18
40
2820
Clockwise
375
A20
200
4.4
57.6
85
Φ18
40
2820
Clockwise
387
SL30
30
5.1
44
88.9
Φ17.4
22.5
2850
anti-clockwise
387
SL45
45
5.7
46.5
88.9
Φ17.4
22.5
2850
anti-clockwise
387
SL50
50
5.7
46.6
88.9
Φ17.4
22.5
2850
anti-clockwise
387
SL60
60
5.55
57.3
88.9
Φ17.4
22.5
2850
anti-clockwise
387
SL80
80
6.36
58.6
88.9
Φ17.4
29
2850
anti-clockwise
387
SL100
100
6.36
29.2
88.9
Φ22.2
32
2850
anti-clockwise
387
SQ10
100
6.4
59
88.9
Φ17.4
25.4
2850
anti-clockwise
387
S15
150
6
59.5
88.9
Φ17.4
36
2850
anti-clockwise
387
SL200
200
5.2
61
88.9
Φ22.2
36
2850
anti-clockwise
387
SL250
250
5.2
61
88.9
Φ22.2
48
2850
anti-clockwise
387
SL320
320
4.1
57.4
88.9
Φ22.2
57.2
2850
anti-clockwise
387
SL400
400
3.6
58
88.9
Φ22.2
57.2
2850
anti-clockwise
387
ZY30
30
5.1
44
88.9
Φ17.4
22.5
2850
anti-clockwise
387
ZY50
50
6
46.5
88.9
Φ17.4
22.5
2850
anti-clockwise
387
ZY70
70
6.5
55
88.9
Φ17.4
29
2850
anti-clockwise
387
ZY200
200
5.2
61
88.9
Φ22.2
36
2850
anti-clockwise
387
ZY250
250
5.2
61
88.9
Φ22.2
48
2850
anti-clockwise
387
DN1000
125
5.7
57
88.9
Φ17.4
22.5
2915
anti-clockwise
387
DN3000
400
3.6
58
88.9
Φ22.2
57.2
2850
anti-clockwise
387
Q05
50
5.93
51.9
88
Φ17.4 Φ18
22
2850
Clockwise
387
Q08
80
6.36
63
88
Φ17.4 Φ18
27
2850
Clockwise
387
Q10
100
6.66
60.1
88
Φ17.4 Φ18
25.4
2850
Clockwise
387
Q10
120
6.1
61.1
88
Φ17.4 Φ18
25.4
2850
Clockwise
387
Q15
150
6.39
62.1
88
Φ17.4 Φ18
32
2850
Clockwise
387
Q20
200
5.387
64.2
88
Φ17.4 Φ18
36
2850
Clockwise
387
Q25
250
5.8
60
88
Φ17.4 Φ18
40
2850
Clockwise
387
N80
320
4.5
61
88.65
Φ17.4
54
2915
Clockwise
540
QS15
150
10.5
57
115
Φ22.2
25.4
2850
anti-clockwise
540
GN1600
200
10.6
55.5
115
Φ22.2
27.5
2850
anti-clockwise
540
GN2000
270
8.3
56.6
115
Φ22.2
35
2850
anti-clockwise
540
GN2500
300
9.3
58.6
115
Φ22.2
35
2850
anti-clockwise
540
GN3100
400
7.62
55
115
Φ22.2
35
2850
anti-clockwise
540
GN4000
520
8
63.7
115
Φ25.4
63.5
2915
anti-clockwise
540
GN5200
710
5.9
65.8
115
Φ25.4
92.1
2915
anti-clockwise
540
GN5600
800
5.9
66.1
115
Φ25.4
92.1
2915
anti-clockwise
540
GN7000
910
5.7
58.7
115
Φ25.4
92.1
2915
anti-clockwise
540
GN10000
1200
6.2
55
115
Φ30
108
2915
anti-clockwise
540
GN12000
1400
4.8
43.5
115
Φ30
108
2915
anti-clockwise
540
GN12000
1600
3.8
37
115
Φ30
108
2915
anti-clockwise
