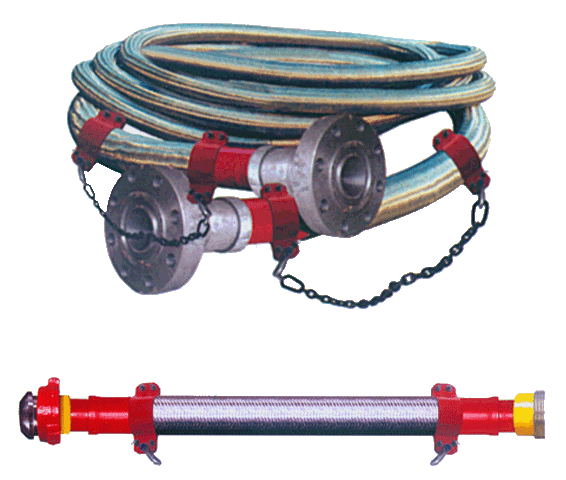

Flexible Choke Kill Line




Flexible Choke Kill Line

1.Application to connection at locations when drill platform, semi-submersible drilling vessel or drilling vessel moves relatively and the installation dimensions of the drill rig subsequently change, and to delivery of oil, gas, mud and other high pressure media including mainly relief line, blowout control line and choke kill line ).
2.Application standard: API Spec 16C SY/T5323-2004
3.The product features resistance to high pressure, thermal insulation, anti-flaming and fire resistance as well as inner wall with high abrasion resistance.



Specification and basic parameters for flexible choke kill line
Inner dia. mm(in)
Rated operation pressure in Mpa (psi)
Test pressure in MPa (psi)
Min. burst pressure in MPa (psi)
Min. bending radius (mm)
50.8(2)
35.0(5000)
70.0(10000)
105.0(15000)
900
64(2 1/2)
1000
76.2(3)
1000
89(3 1/2)
1100
101.6(4)
1200
50.8(2)
70.0(10000)
105.0(15000)
157.5(22500)
1000
63.5(3 1/2)
1100
76.2(3)
1150
89(3 1/2)
1200
101.6(4)
1250
50.8(2)
105.0(15000)
157.5(22500)
236.25(33750)
1000
63.5(3 1/2)
1150
76.2(3)
1200
50.8(2)
138.0(20000)
207.0(30000)
310.0(45000)
900
64(2 1/2)
1100
76.2(3)
1200
