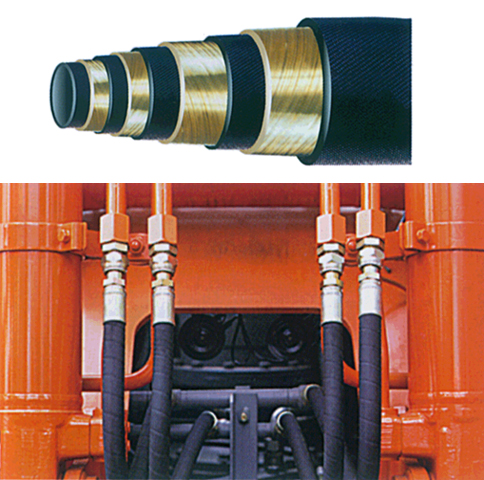

High Pressure Steel Wire Armored Hose




This product is used mainly for hydraulic power transmission or for delivery of water, gas, oil and other high pressure media at operating temperature of -40℃~+100℃.It is made from the latest nanometer material, providing good resistance to oil, ozone and aging, and high pulse performance.


Hose spec.
Inner dia.
mm
Dia. of steel line layer
mm
Outer dia.
mm
Operating pressure
Burst pressure
Min. bending radius
mm
Reference weight
Kg/m
4sp-6-100
6±0.5
14.4±0.8
19±1.0
100
210
130
0.7
4sp-8-801
8±0.2
16.4±0.8
20.5±1.0
80
210
145
0.9
4sp-10-70
10±0.5
19.2±0.8
24±1.0
70
210
160
1
4sp-13-60
13±0.5
22.2±0.8
27±1.0
60
180
410
1.3
4sp-16-55
16±0.5
26±0.8
30±1.0
55
165
260
1.8
4sp-19-46
19±0.5
30±0.8
35±1.5
46
138
280
2.1
2sp-19-28
19±0.5
27±0.8
31±1.0
28
84
280
1.4
4sp-22-40
22±0.8
33±0.8
37±1.5
40
120
320
2.4
4sp-25-35
25±0.8
36±0.8
41±1.5
35
105
360
2.5
2sp-25-21
25±0.8
33±0.8
38±1.5
21
64
360
1.7
4sp-32-32
32±0.8
44±0.8
49±1.5
32
96
460
3.2
2sp-32-20
32±0.8
41±0.8
46±1.5
20
60
460
2.2
4sp-38-25
38±1.0
50.8±1
56±1.5
25
75
560
4.4
4sp-45-23
45±1.0
57.8±1
61.8±1.5
23
69
650
4.9
4sp-51-20
51±1.0
63.8±1
69±1.5
20
60
720
5.5
2sp-51-14
51±1.0
60.8±1
65±1.5
14
52
720
3.5
6sp-6-110
6±0.5
16.6±0.8
20.6±1.0
110
220
180
1
6sp-10-77
10±0.5
21.8±0.8
25.8±1.0
77
210
210
1.5
6sp-13-66
13±0.5
24.8±0.8
28.8±1.0
66
198
260
1.8
6sp-16-61
16±0.5
29±0.8
33.0±1.0
61
183
310
2
6sp-19-60
19±0.5
33.0±0.8
37.0±1.5
60
180
350
2.5
6sp-25-50
25±0.8
39.0±0.8
44.0±1.5
50
150
430
2.9
6sp-32-45
32±0.8
47.0±0.8
50.4±1.5
45
135
530
3.8
6sp-38-45
38±1.0
54.2±1.0
57.6±1.5
45
135
660
5.8
6sp-51-45
51±1.0
67.2±1.0
70.6±1.5
45
135
820
7.2
