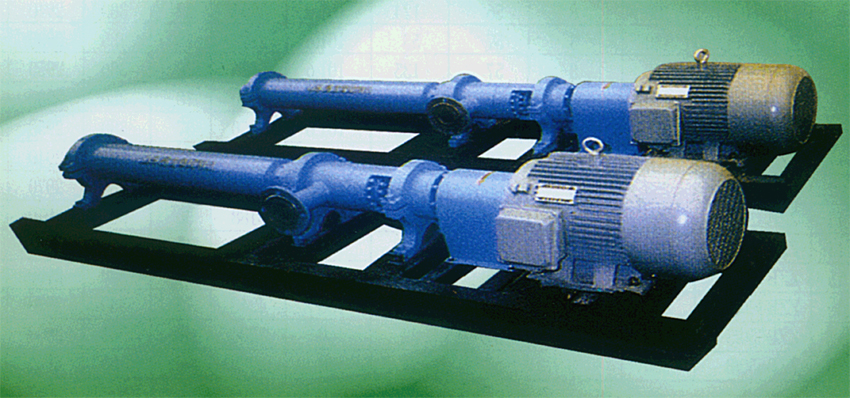

Installation Of Multistage Mechanical Seal Supercharged Horizontal Water Injection Pump

E-motor，coupling and suction chamber assembly through E-motor seat and Water Injection Pump through bracket are fixed on the base after leveling & straightening，control cabinet is fixed on the ground separately.

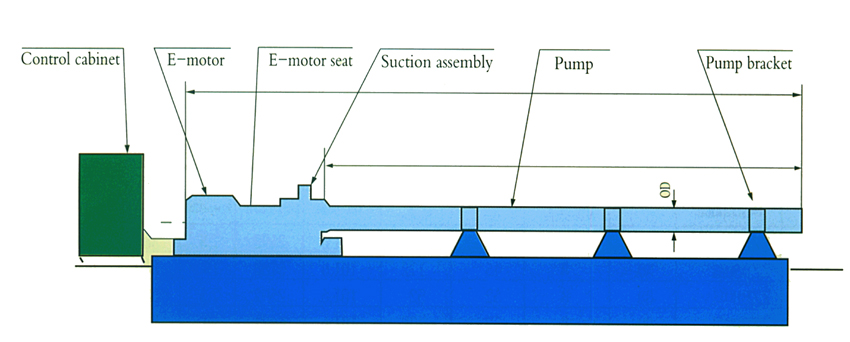

Structure of multistage mechanical seal Supercharged Horizontal Water Injection Pump




Specifications of multistage mechanical seal Supercharged Horizontal Water Injection Pump
Multistage mechanical seal supercharged Horizontal Water Injection Pump with three series can be used in the operation condition with displacements form 30m3/d to 550 m3/d and inlet pressure form 1MPa to 8MPa &supercharged pressure’s range form 2MPa to 12MPa.
We can also design different kinds of models & speciation of pumps as per the requests of users.


Specifications of multistage mechanical seal Supercharged Horizontal Water Injection Pump
Item
Pump
E-motor
Total Length
（mm）
Description
Displacement
（m3/d）
Supercharged Valve
（MPa）
Efficiency
（%）
Stage Number
O.D.
(mm)
Length
（mm）
Power
（KW）
Voltage
（V）
Speed
（rpm）
1
ZZB50/3
50
3
45
64
101.6
2592
7.5
380
2900
4229
2
ZZB50/8
50
8
45
172
101.6
5188
15
380
2930
6825
3
ZZB80/3
80
3
52
52
101.6
2592
7.5
380
2930
4229
4
ZZB80/8
80
8
52
132
101.6
4421
18.5
380
2940
6058
5
ZZB100/3
100
3
56
48
101.6
2592
11
380
2930
4229
6
ZZB100/8
100
8
56
124
101.6
3964
22
380
2940
5662
7
ZZB150/3
150
3
57
53
101.6
2592
15
380
2930
4229
8
ZZB150/8
150
8
57
135
101.6
5336
30
380
2950
7034
9
ZZB200/3
200
3
58
58
101.6
2740
18.5
380
2930
4377
10
ZZB200/8
200
8
58
150
101.6
6250
37
380
2950
7948
11
ZZB250/3
250
3
58
72
101.6
2740
22
380
2940
4438
12
ZZB250/8
250
8
58
146
101.6
7017
45
380
2970
8931
13
ZZB320/3
320
3
59
70
101.6
5188
30
380
2970
6886
14
ZZB320/8
320
8
59
178
101.6
7530
45
380
2970
9444
15
ZZB400/3
400
3
55
37
130
2660
37
380
2950
4358
16
ZZB400/8
400
8
55
97
130
4240
75
380
2970
6154
17
ZZB550/3
550
3
67
22
168
1504
37
380
2950
3202
18
ZZB550/8
550
8
67
61
168
3288
90
380
2980
5202
