Nickel-Plated Mini Brass Ball Valves





Nickel-Plated Mini Brass Ball Valves

Production: Nickel-Plated Mini Brass Ball Valves
 Part number: VALVE-MBALL-025 (1/4")
General:
Mini Brass Ball Valves 1/4", 450 psi CWP or 150 WSP service, Mini Valves Panel Mountable with 1/4" MPT x FPT, Nickle-Plated, Suitable for Vacuum Service to 29.9"Hg.

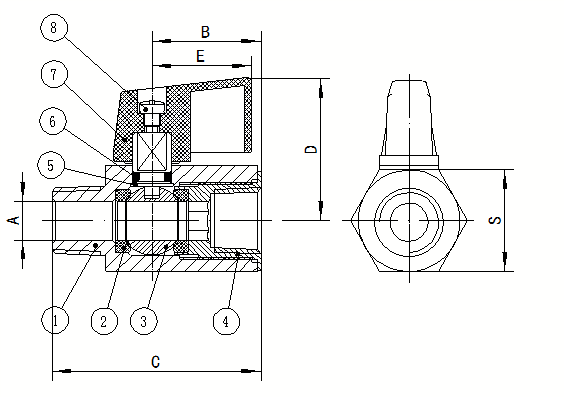

Material of instructions

Part No.

Part Description

Material

1

Body

Brass

2

Cap

Brass

3

Ball

Brass Chrome-Plated

4

Seat

PTFE

5

Stem

Brass

6

Stem Seal

Viton?

7

Handle

Reinforced Nylon

8

Nut

Brass



450 PSI CWP 150 WSP Service
Suitable for Vacuum Service to 29.9"Hg
1/8"- 3/8" Full Port
1/2" Regular Port
Temperature Range: -20°F to 370°F
One Piece Brass Nickel-Plated Body
Blow Out Proof Stem
Chrome-Plated Brass Ball
PTFE Ball Seats and Viton? O-Ring
Polycarbonate Handle
MPT x FPT Connection
ISO Registered Factory
MSS SP-110 Approved
RoHS Compliant
Cv: 8.23
