Vertical Check Valves







Vertical Check Valves

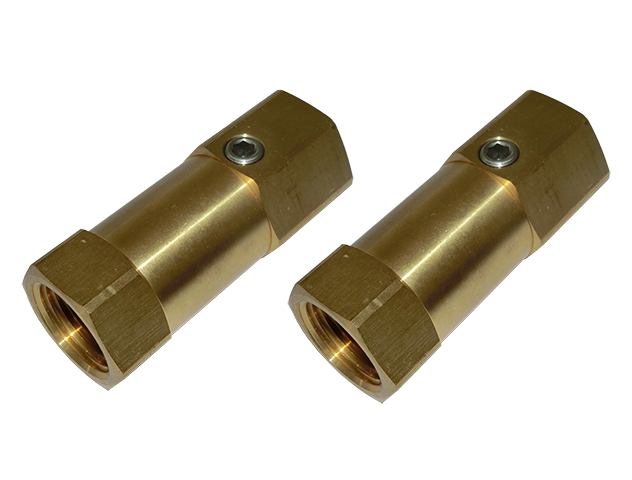

Production: Vertical In-line Check Valves

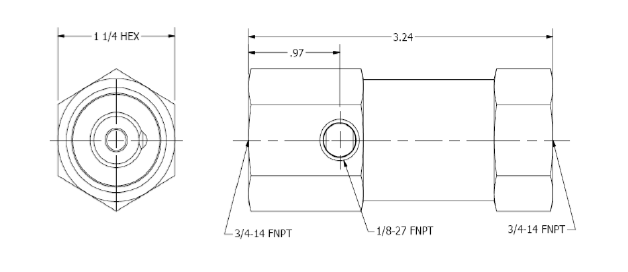

Part number: VALVE-CHKVERT-075 (3/4")
General: Vertical In-line Check Valves open to allow flow in one direction and close when flow stops or reverses



Feature:
A Plugged 1/8 NPT Unloader Port
Maximum pressure: 500 PSI
Maximum temperature: 450℉
Max flow capacity (SCFM) max@100 PSIG: 30
Cracking pressure: 1PSI MAX
Valve flow coefficient (Cv): 4.18

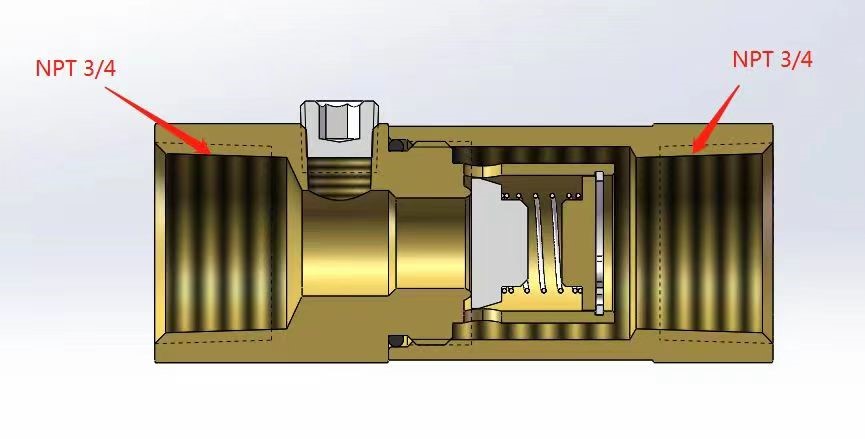

Material of instructions

Part No.

Part Description

Material

1

Body(MNPT Shown)

C360 Machined Brass

2

Spring

302SS

3

Poppet

15% Glass Filled Teflon

4

Fastener

316 Stainless Steel
