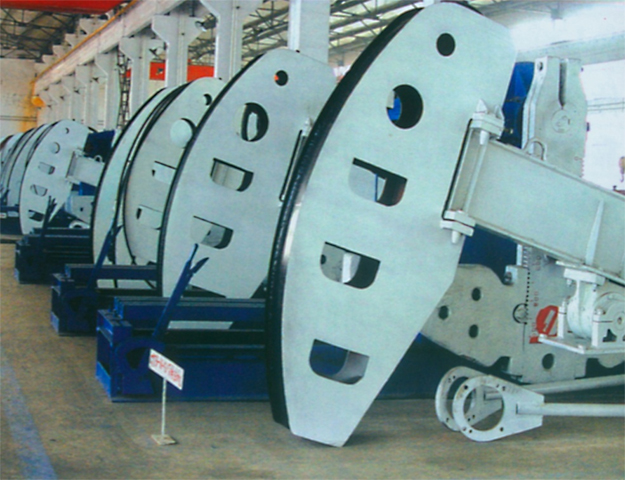

Conventional Walking Beam Pumping Unit




Conventional Walking Beam Pumping Unit

Pumping unit is the ground power equipment regularly used in the production of oilfield.
Walking beam pumping unit is warmly welcomed by users with it’s simple configuration, reliable & simple operation & installation, also having obtained the biggest market share of the pumping unit in service.
The pumping unit designed & manufactured by our company have some virtues of complete type, reasonable design parameters, good performance, reliable quality. All kinds of energy-saving pumping units developed by us as per demands of oilfields recently have greatly improved in respects of motive performance, dynamic energy compared with regular type pumping unit, with big load carrying ability, good performance, stable running, high comprehensive ratio, obvious effect of saving energy.
Conventional type, out-phase type, out-phase walking beam type, varied Arm type, swinging guide bar type, rotating horse-head type and all kinds of walking beam pumping unit conforming to API Standard made by our company with widely using coverage can meet the demands of different working condition in every oilfield home & abroad & meanwhile we can provide good service of before & after sales for our users timely.


  Main Technical Parameters for Walking Beam Pumping Unit
Type
Stroke
(m)
Max. Polished
Rod Load
(KN)
Stroke per minute
(rpm)
Rated Torque
(KN. m)
CYJY3-1.5-6.5HB
1.5,1.2,0.9
30
9,12,15
6.5
CYJY3-1.5-9HB
1.5,1.2,0.9
30
9,12,15,
9
CYJ5-1.8-13HB
1.8,1.5,0.9
50
6,9,12
13
CYJ6-2.5-26HB
2.5,2.0,1.5
60
6,9,12
26
CYJ8-3-37HB
3.0,2.5,2.0
80
6,9,12
37
CYJ10-3-37HB
3.0,2.5,2.1
100
6,9,12
37
CYJ10-4.2-53HB
4.2,3.0,2.5
100
4,6,8
53
CYJ12-4.8-53HB
4.8,3.6,2.5
120
4,6,8
53
CYJ12-4.8-53HB
4.8,3.9,3.0
120
4,6,8
53
CYJ14-4.8-53HB
4.8,4.5,4.2
140
4,5,6
53
CYJ14-4.8-73HB
4.8,3.6,2.5
140
4,6,8
73
